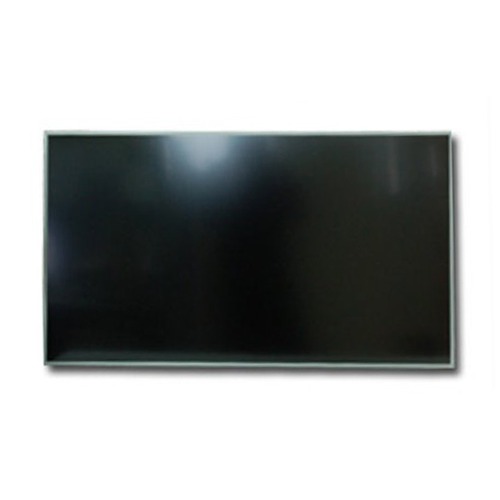

23.8" AUO P238HAN01.0 TFT Display Industrial LCD screen For Digital Signal
Description:
P238HAN01.0 is 23.8" inch diagonal a-Si TFT-LCD display screen product,without touch screen.
Parameters:
Application:
Based on its features, Headsun recommended this model used for Digital signal.
Head Sun also have other Industrial LCD Display, pls contact to us for the further information！
P238HAN01.0 is 23.8" inch diagonal a-Si TFT-LCD display screen product,without touch screen.
Parameters:
| Brand | AUO | Model P/N | P238HAN01.0 |
| Diagonal Size | 23.8" | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI | Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm | Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline | Dim.543(H)×317.4(V)×11.7(D) mm | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC | Light Source | WLED [17S4P] , 50K hours , W/O Driver |
| Weight | 2.28±0.08Kgs | Designed For | Digital signal |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Application:
Based on its features, Headsun recommended this model used for Digital signal.
Head Sun also have other Industrial LCD Display, pls contact to us for the further information！
