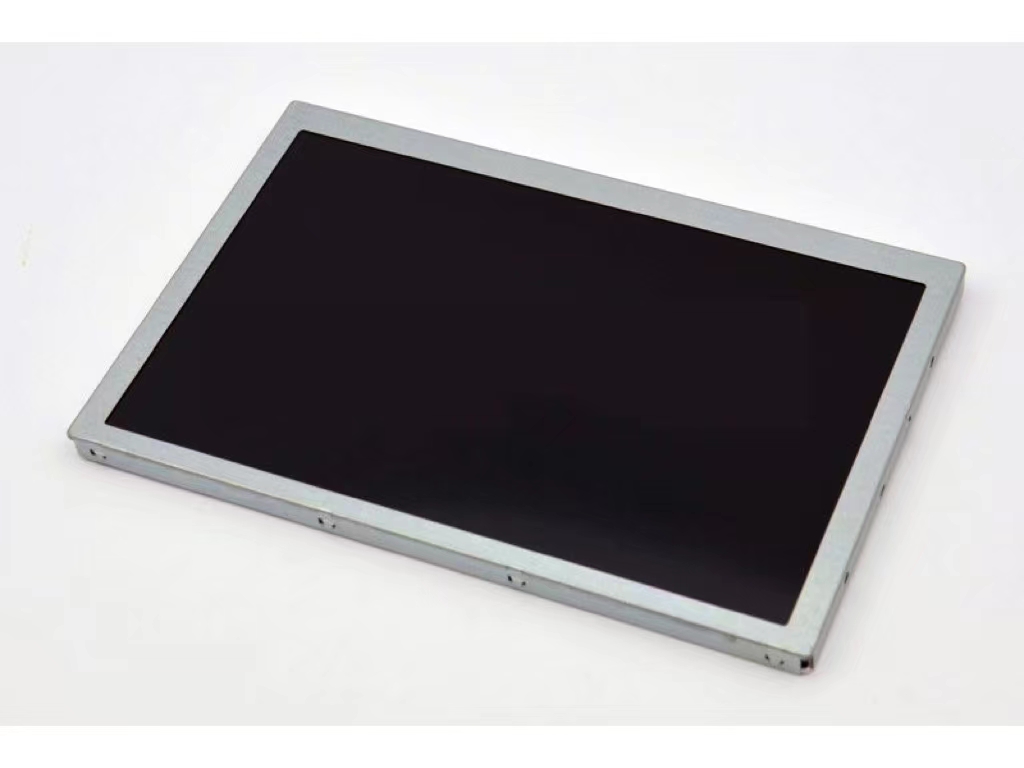

5.7inch NL6448BC18-01 640X480 TFT Touch LCD Display

Short Description:

5.7" diagonal TFT LCD display
resolution: 640x480,

luminance: 400cd/m² (Typ.),
Outline Dim. 135(W)×104.6(H)×10.9(D) mm
Active size:116.16(W)×87.12(H) mm

Interface: CMOS

CONTACT NOW

Product Detail

Product Tags

Parameters of NL6448BC18-01:

Brand	Tianma Europe	Model P/N	NL6448BC18-01
Diagonal Size	5.7"	Panel Type	a-Si TFT-LCD, LCM
Resolution	640*480	Light Source	WLED [9S2P] , 50K hours , W/O Driver
Active Area	116.16(W)×87.12(H) mm	Interfaces	CMOS
Outline size	135(W)×104.6(H)×10.9(D) mm	Contrast Ratio	850:1
Luminance	400 cd/m²	Touch Panel	without
Color Depth	262K 60% NTSC	Storage Temperature	-30 ~ 80 °C
Operation Temperature	-30...+80°C

Product Details:

NL6448BC18-01 is a 5.7 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: Wide Temperature, Lamp Repaceable, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse . Based on its features, it is recommended that this model be applied to Industrial etc.
